MALORY 600W Low Voltage Landscape Lighting Transformer β Multi-Tap Power Supply (12Vβ22V) for Outdoor Lighting (MLR-TF04)
MALORY 600W Low Voltage Landscape Lighting Transformer β Multi-Tap Power Supply (12Vβ22V) for Outdoor Lighting (MLR-TF04) - 600W / Transformer Only is backordered and will ship as soon as it is back in stock.
π Extra 6% Off Retail Prices Sitewide
π° 14% Off Orders Over $500
β
Automatic Discounts at Checkout
π Free Delivery in 3β5 Business Days
π CA & FL Orders Ship Within 24 Hours
β©οΈ 30-Day Hassle-Free Returns
π‘οΈ Lifetime Warranty
Couldn't load pickup availability
Highlights
Highlights
600W Multi-Tap Power for Large Lighting Systems

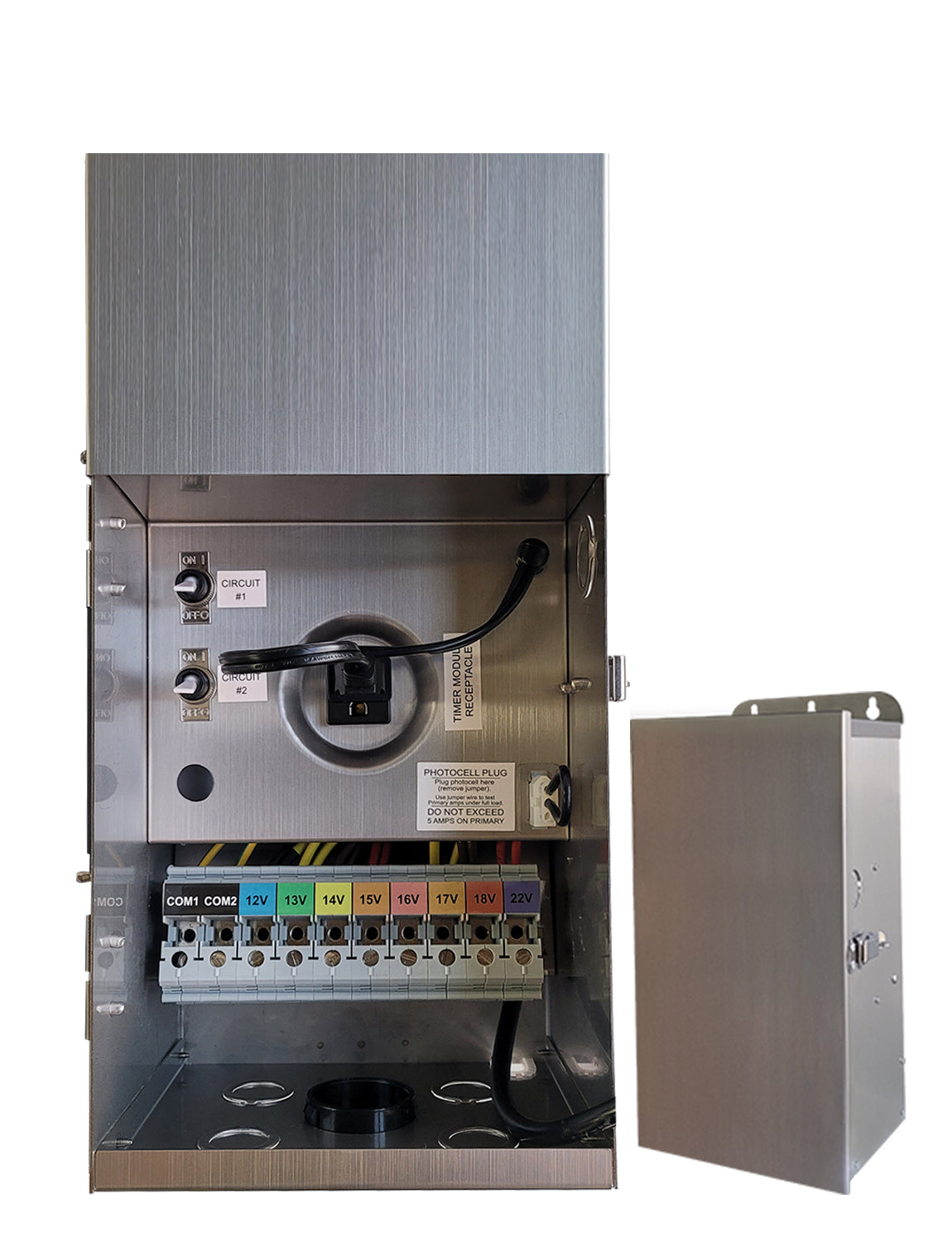

ETL-listed 600W low voltage transformer converts 120V AC household power to safe low-voltage output. Multi-tap terminals include COM1 / COM2 and 12V, 13V, 14V, 15V, 16V, 17V, 18V, and 22V AC taps, making it easier to support multiple cable runs and reduce voltage drop in larger landscape lighting layouts.

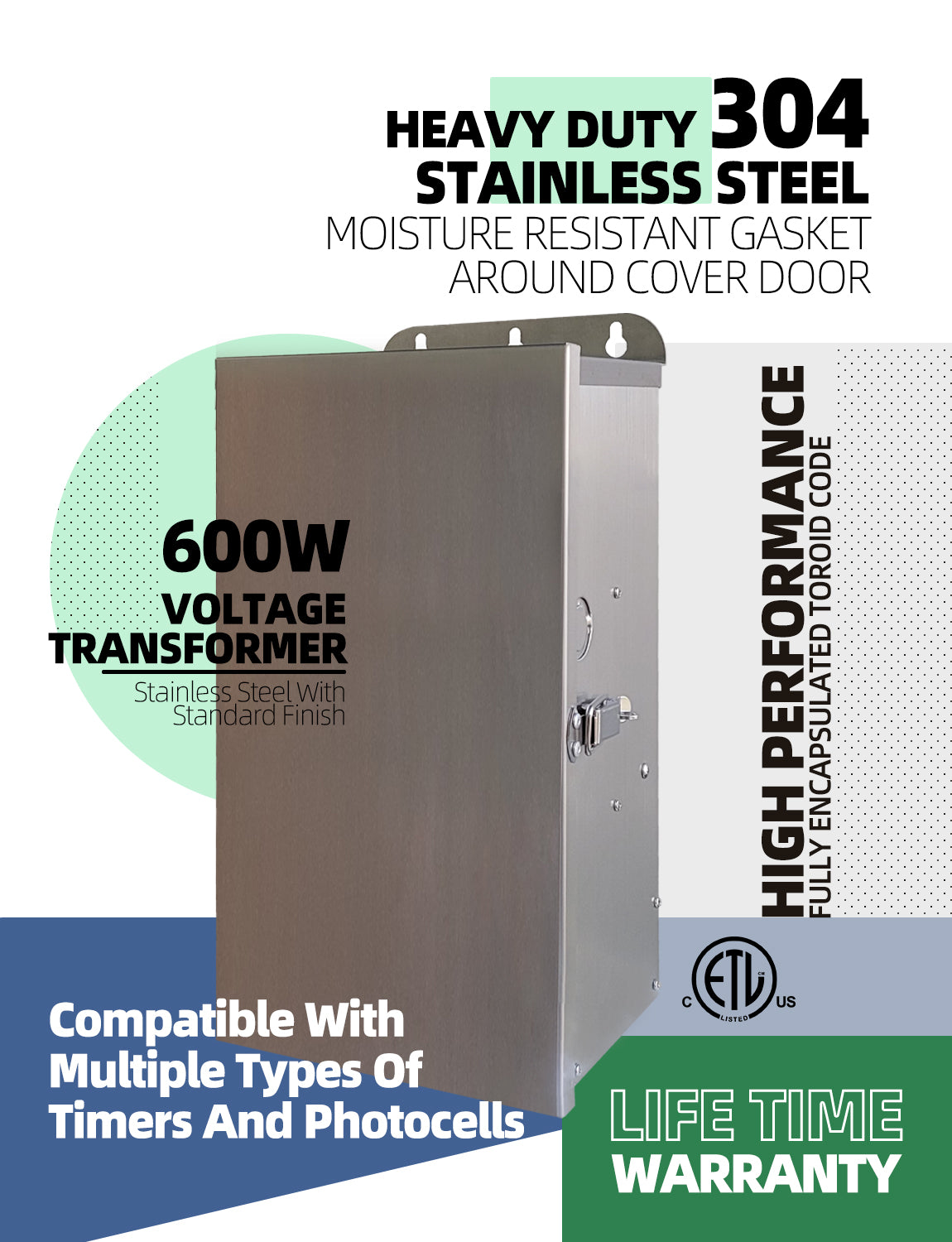

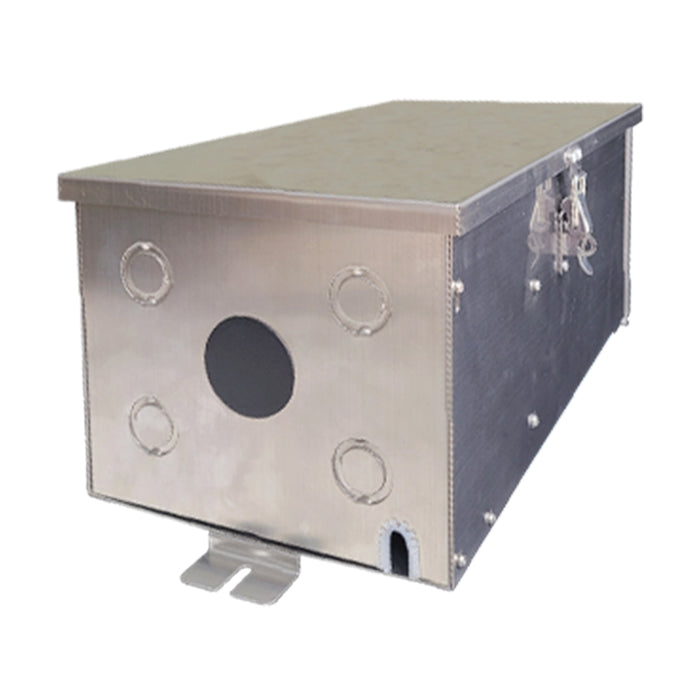

Durable 304 Stainless Steel Outdoor Housing

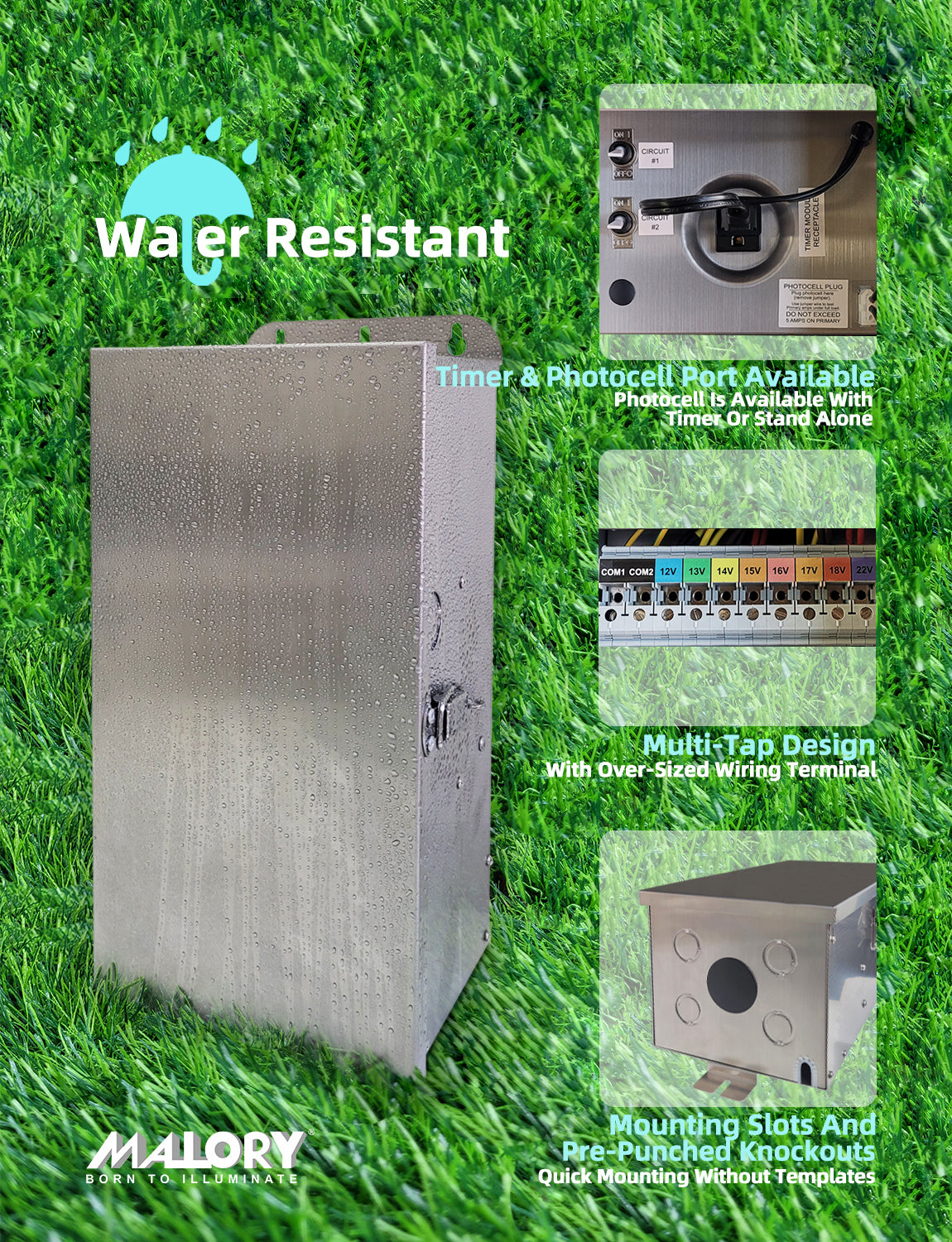

Built with a 304 stainless steel enclosure to help resist outdoor weather, corrosion, rain, snow, and heat. The lockable latch adds extra safety, while the removable bottom plate with pre-punched knockouts provides easier access for wiring and installation.
Toroidal Core with Circuit Protection
Designed with a fully encapsulated toroidal core for stable low-voltage output and efficient performance. The built-in 25A magnetic circuit breaker helps protect the system from overload and short-circuit issues.

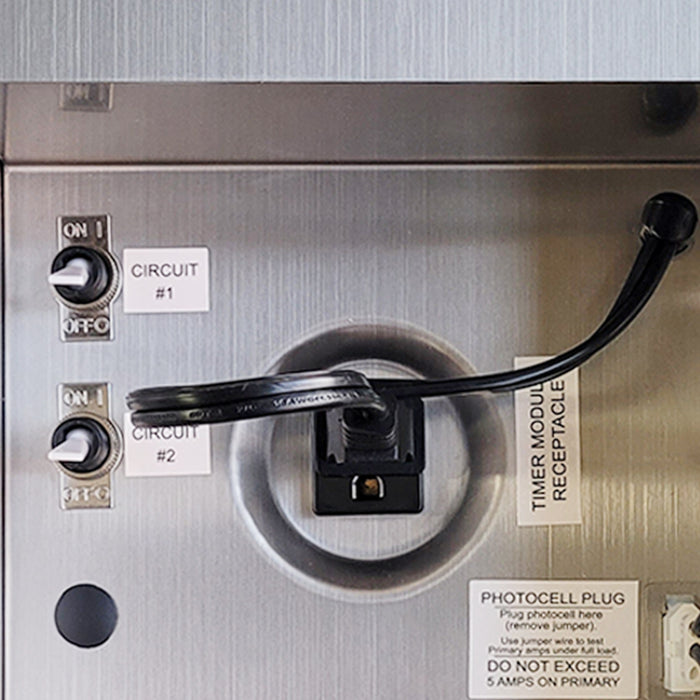

Timer & Photocell Control Ready
Comes with a mechanical timer and photocell sensor for automatic on/off control by schedule or daylight. It can also be used with a compatible smart plug for more convenient remote control.
Built for Outdoor Landscape Lighting Applications
Ideal for low voltage landscape lighting systems, including spotlights, path lights, well lights, deck lights, garden lights, fountain lights, pool-area lighting, and other outdoor decorative lighting setups.
Description
Description

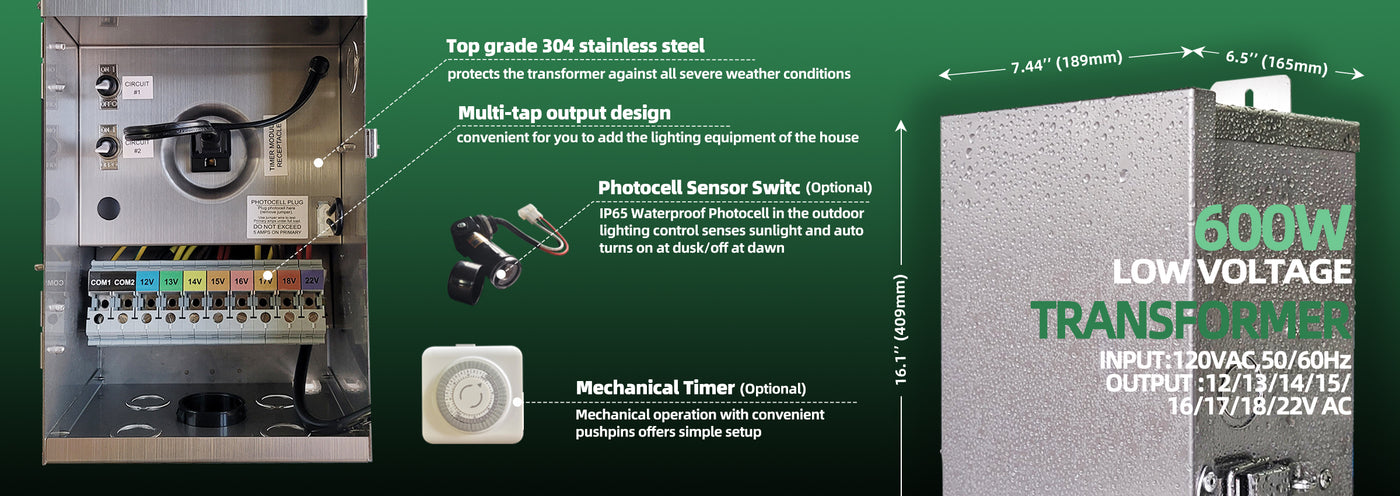

The MLR-TF04 600W multi-tap low voltage transformer is built for large outdoor landscape lighting systems that need stable power and flexible wiring. Its ETL-listed design converts 120V AC household power to low-voltage output, with COM1 / COM2 and 12Vβ18V / 22V AC taps to support multiple cable runs and help reduce voltage drop. Made with a 304 stainless steel outdoor housing, toroidal core, built-in 25A magnetic circuit breaker, mechanical timer, and photocell sensor, it provides durable, reliable power control for spotlights, path lights, well lights, garden lights, fountain lights, and other low voltage outdoor lighting applications.
Specification
Specification
Material: 304 Stainless Steel
Power Capacity: 600W
Input Voltage: 120V AC
Output Voltage: 12V / 13V / 14V / 15V / 16V / 17V / 18V / 22V AC
Output Terminals: COM1 / COM2 + Multi-Tap Voltage Terminals
Core Type: Fully Encapsulated Toroidal Core
Circuit Protection: 25A Magnetic Circuit Breaker
Weather Resistance: IP65 Rated
Lead Wire: 6-Foot 3 Γ 18AWG Premium Copper Wire
Certification: ETL Listed
Dimensions: 17"D Γ 7"W Γ 7.5"H
Weight: 26 lb

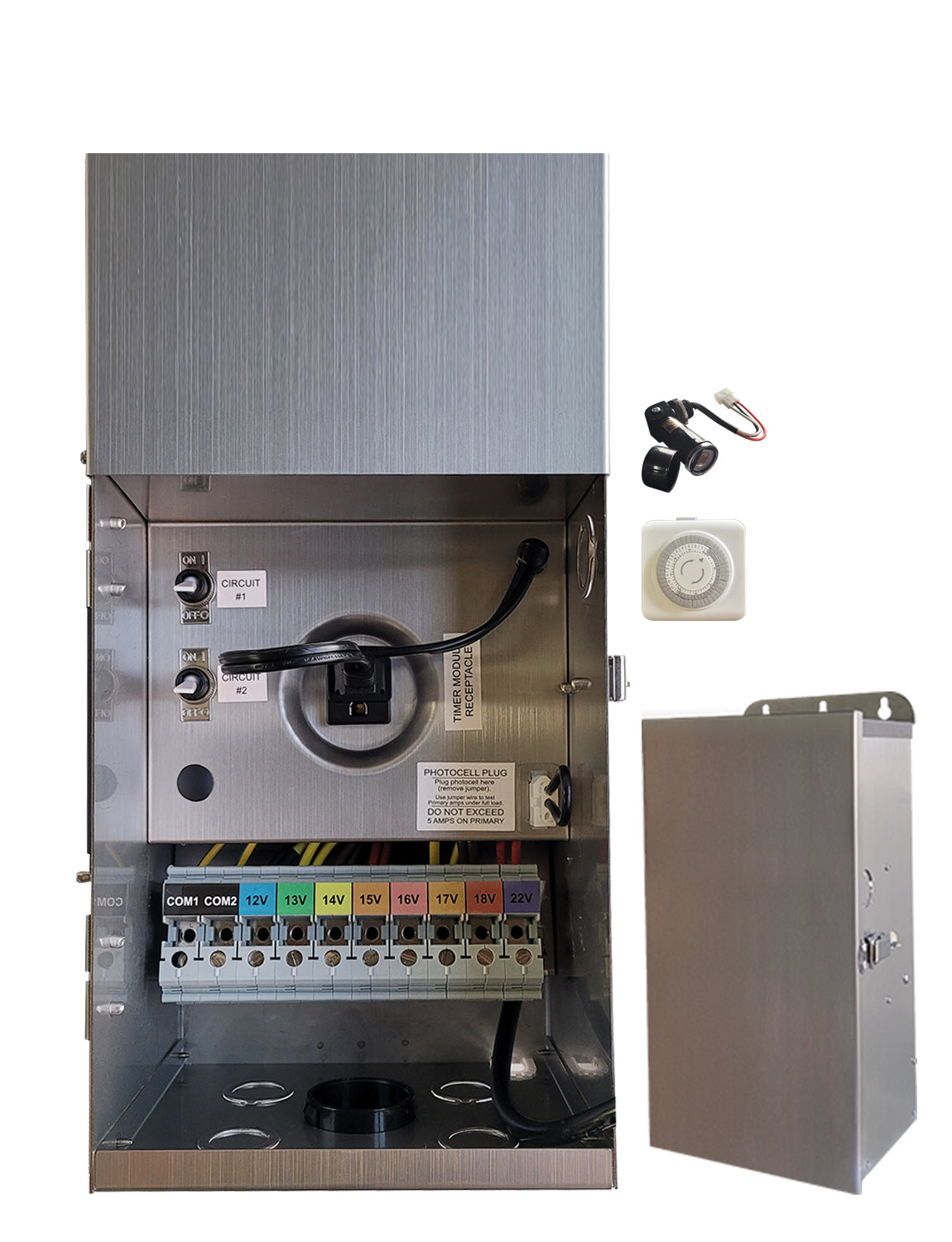

Included Accessories: Mechanical Timer & Photocell Sensor
MALORY 600W Low Voltage Landscape Lighting Transformer β Multi-Tap ...
About MLR-TF04
Malory MLR-TF04 600W Transformer FAQ
01 How many landscape lights can a 600W transformer power?
The MLR-TF04 supports up to 600W of total lighting load. For reliable long-term operation, we recommend using no more than 80% of its rated capacity (480W). For example, it can power up to 96 LED fixtures rated at 5W each, provided the load is properly distributed and voltage drop is managed.

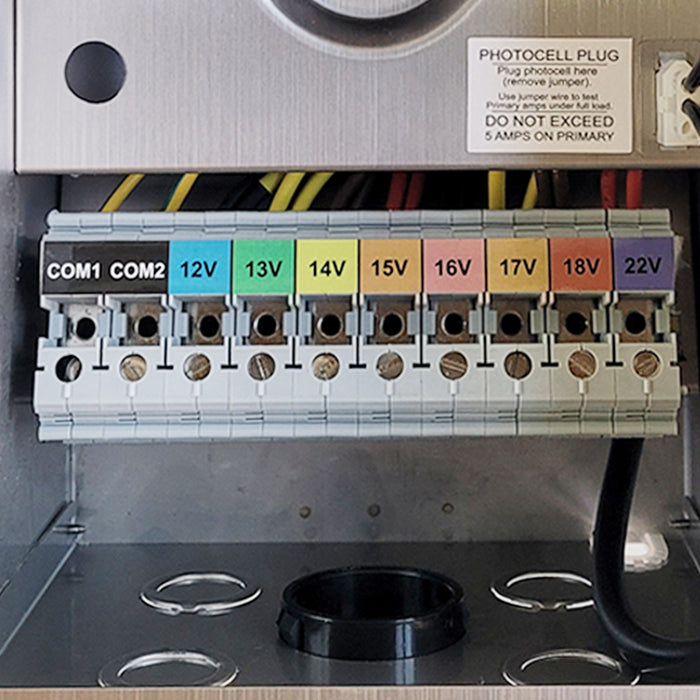

02 What are COM1 and COM2 used for, and how much power can each handle?
COM1 and COM2 are common return terminals used to connect landscape lighting cable runs. Each COM terminal supports a maximum load of 300W, with a combined transformer capacity of 600W. Both terminals share the same power control and cannot operate as independently controlled lighting zones.
03 Can I connect multiple cable runs to this transformer?
Yes. The MLR-TF04 supports multiple cable runs through its COM terminals and voltage taps. This allows you to distribute lighting across different landscape areas while managing voltage drop. Ensure the total load stays within the transformer capacity and each COM terminal's 300W limit.
04 What is the purpose of the 12Vβ22V voltage taps?
The transformer offers 12V, 13V, 14V, 15V, 16V, 17V, 18V, and 22V AC outputs to compensate for voltage drop over longer cable runs. Select the appropriate tap based on cable length, wire gauge, connected wattage, and the operating voltage range of your fixtures.
05 Can I connect 12V landscape lights to higher voltage taps?
Yes, provided the actual voltage reaching each fixture remains within its rated operating range. Higher voltage taps help compensate for voltage drop on long cable runs, but excessive voltage can damage LED fixtures. Always verify compatibility before selecting a higher tap.
06 Does this transformer include a timer and photocell?
The MLR-TF04 is available in two configurations: Transformer Only and Transformer With Photocell & Timer. The mechanical timer enables scheduled operation, while the photocell automatically controls lighting based on ambient daylight. Select your preferred configuration before purchasing. We highly recommend the one with photocell & timer.
07 Can COM1 and COM2 control two lighting zones independently?
No. COM1 and COM2 are common return terminals for distributing electrical loads, not independent lighting zones. Both operate under the same power control, timer, and photocell settings.
08 Is this transformer compatible with LED landscape lighting?
Yes. The MLR-TF04 is compatible with low-voltage AC landscape lighting fixtures, including LED spotlights, path lights, well lights, and deck lights. Make sure your fixtures support the selected output voltage and AC power.
09 Does the transformer have overload and short-circuit protection?
Yes. The MLR-TF04 features a built-in 25A magnetic circuit breaker to help protect against overloads and short circuits. If the breaker trips, identify and correct the electrical issue before resetting it.
10 Can I use this transformer to replace an existing landscape lighting transformer?
Yes. The MLR-TF04 can replace an existing low-voltage AC landscape lighting transformer, provided your fixtures are compatible and the total connected load is within its capacity. Check your existing wiring, fixture voltage requirements, and power consumption before purchase.
-
