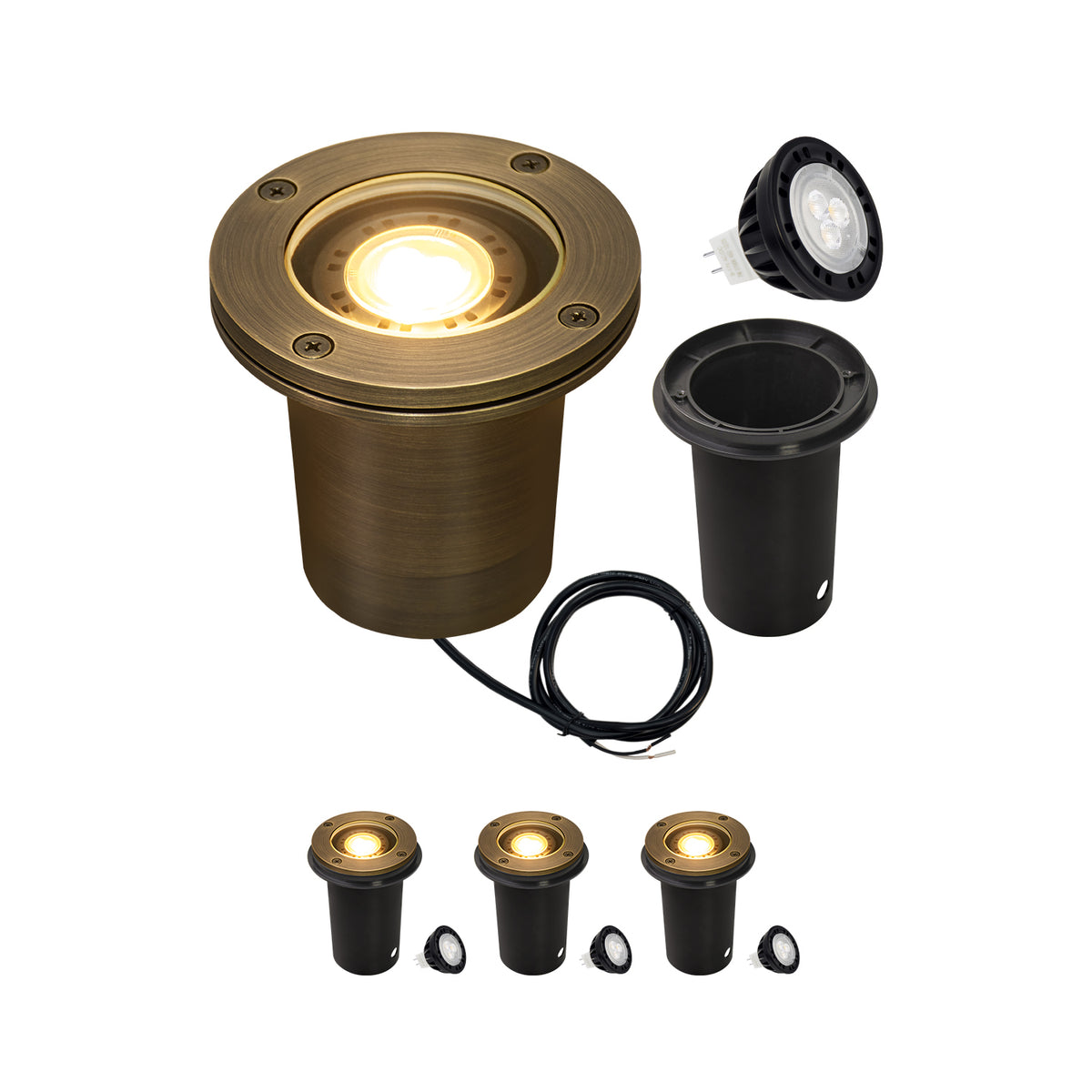

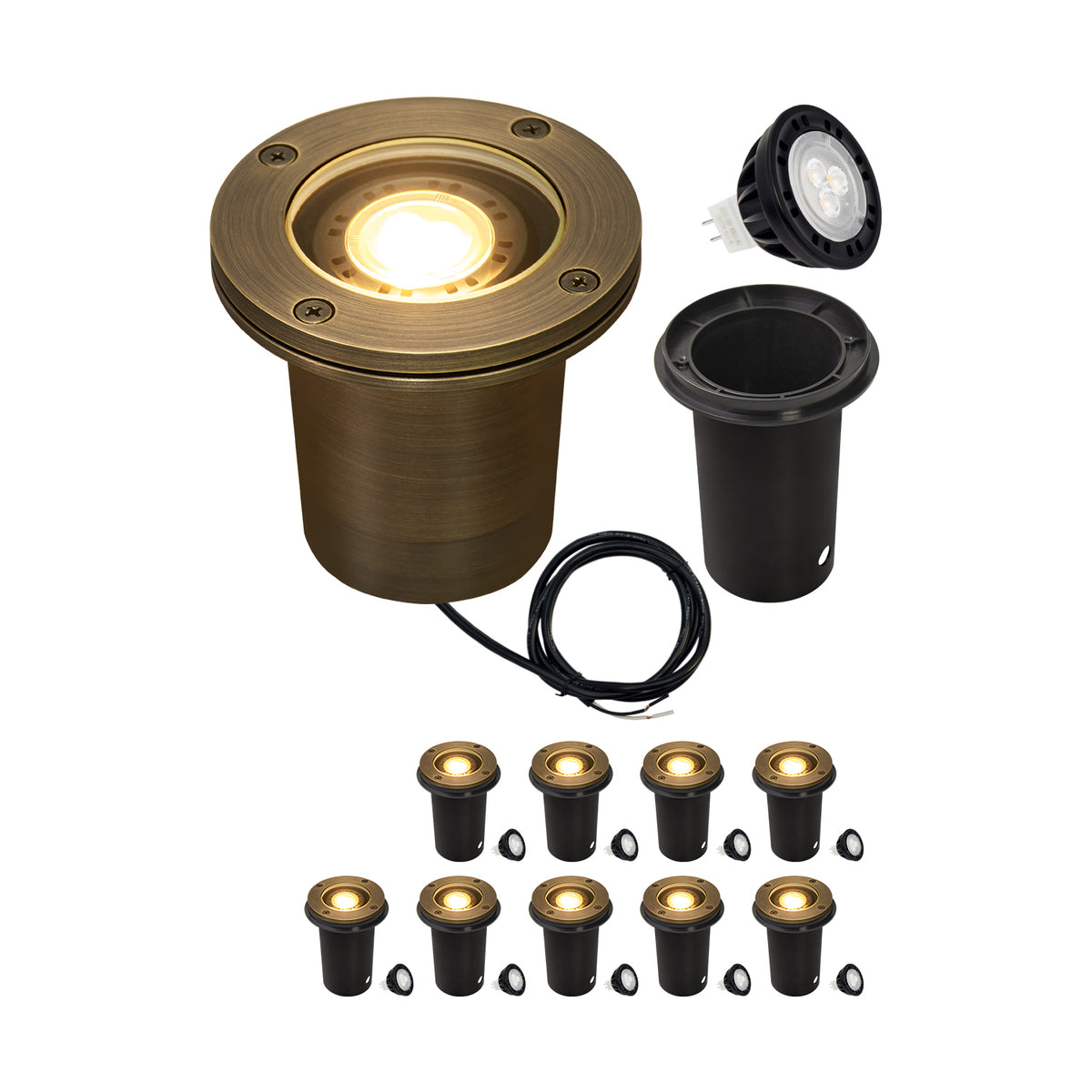

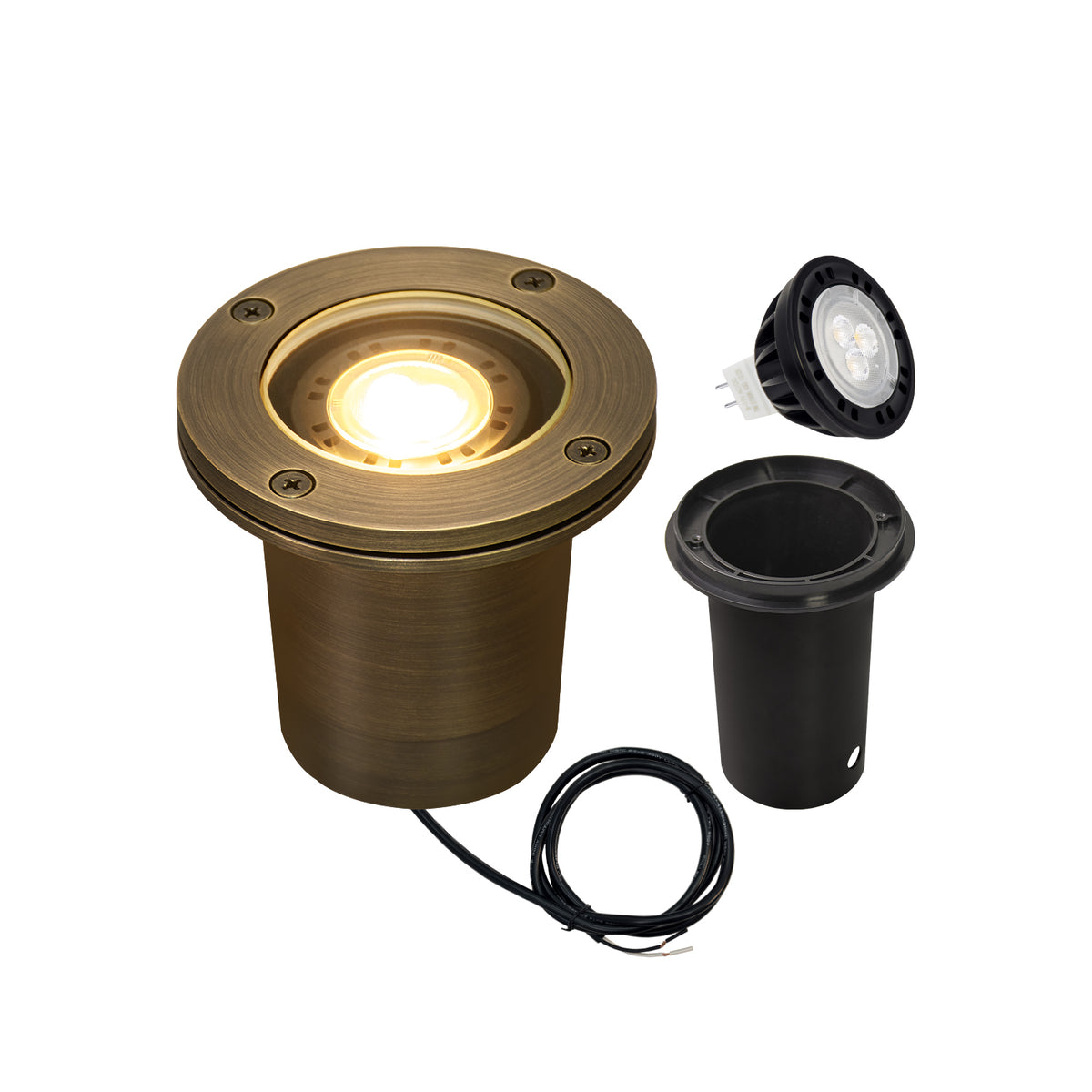

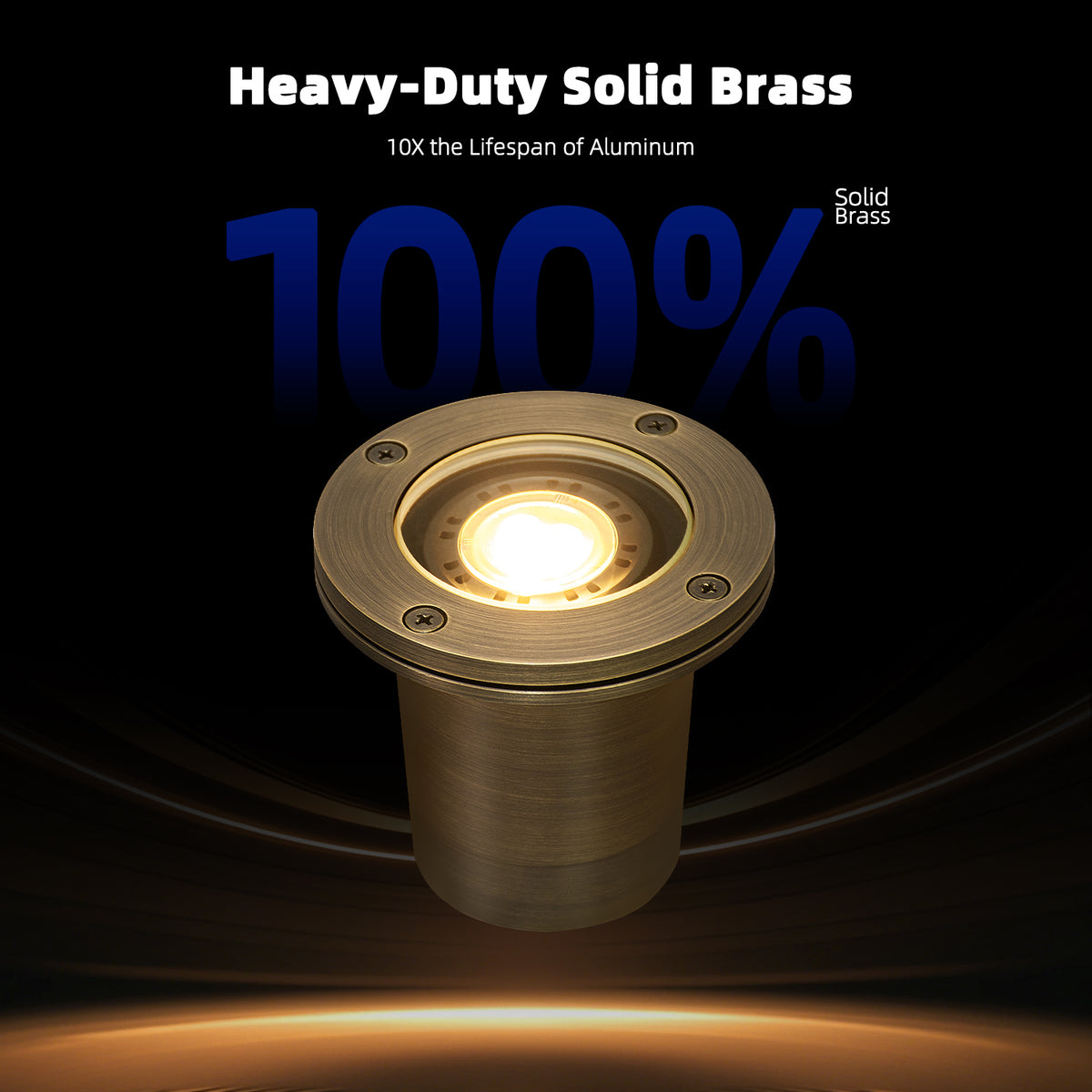

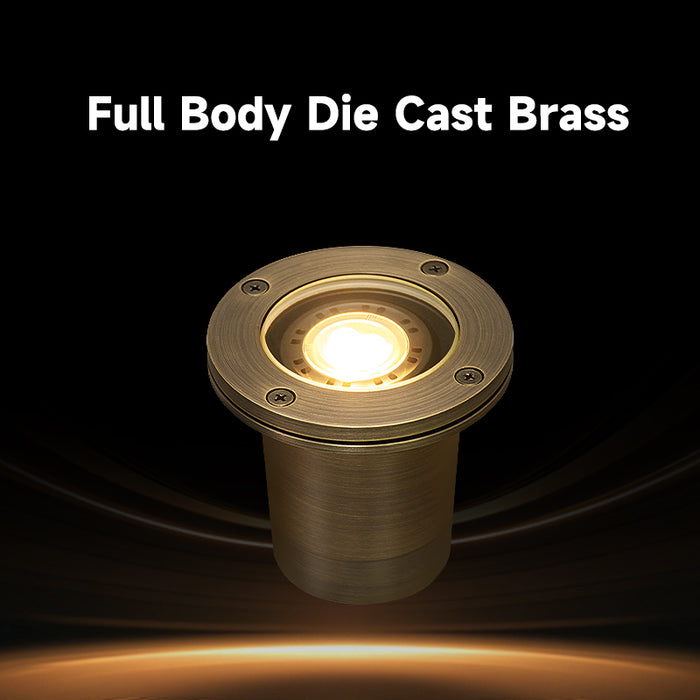

MALORY MLR-G03 Full Die-Cast Brass In-Ground Well Light, 12V Low Voltage Landscape Lighting

Open-top well lights are designed for strong upward illumination from ground level.

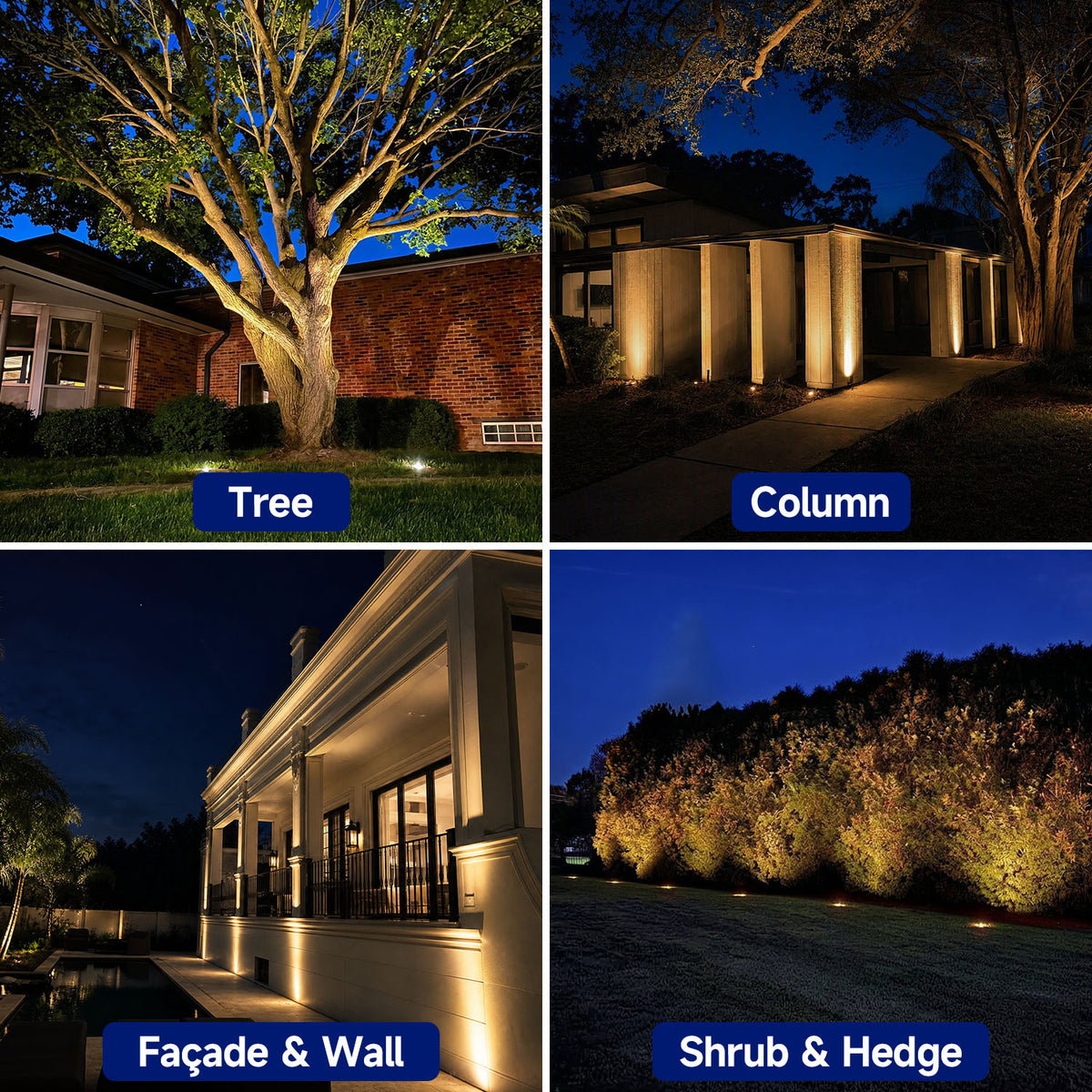

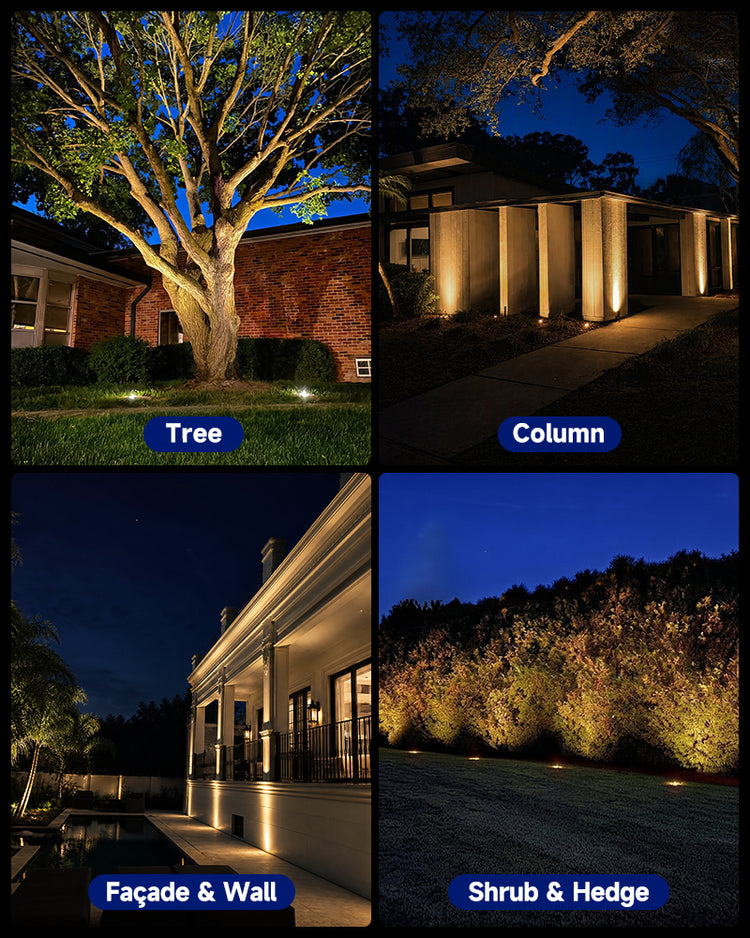

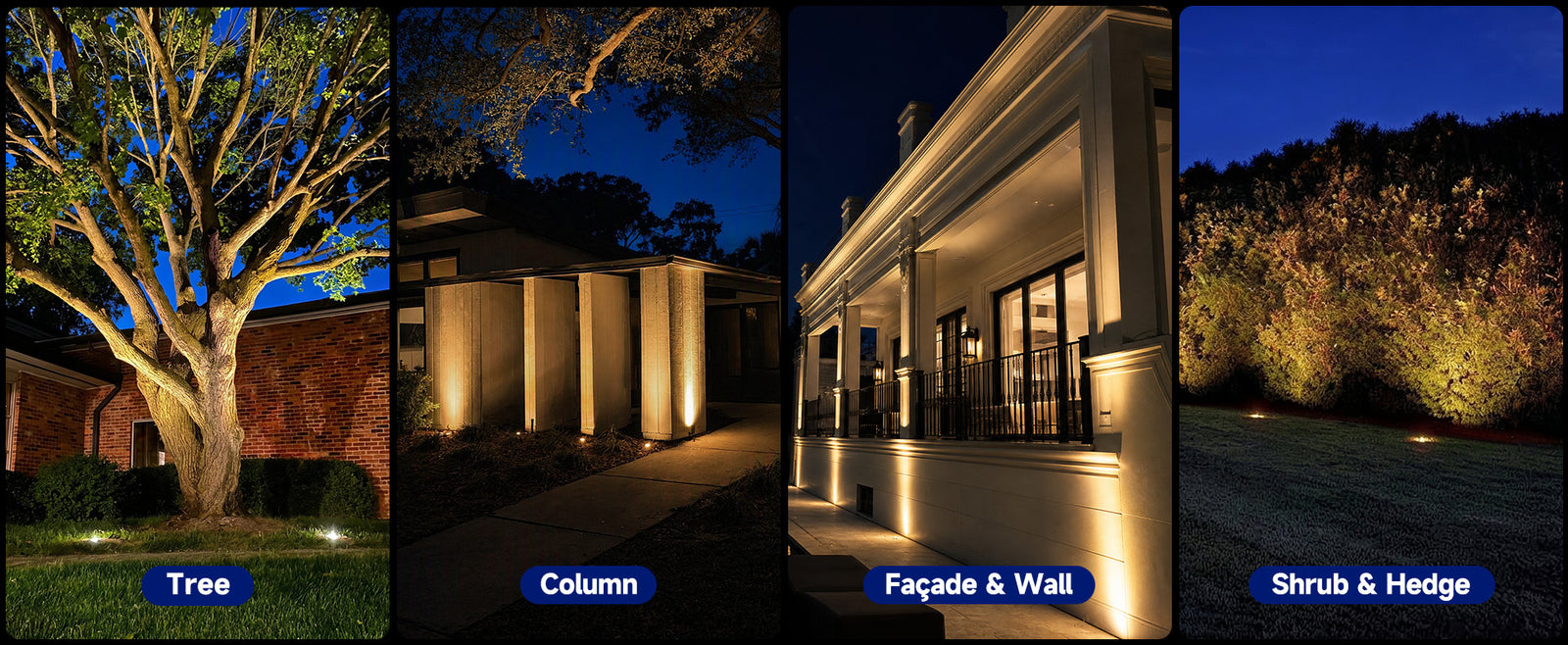

They are especially suitable for:

• Trees and taller planting
• Large shrubs and structured foliage
• Exterior walls and facades
• Stone or brick surfaces
• Columns and pillars
• Architectural details
• Landscape features where a low-profile, concealed fixture is preferred

Because there is no turret, louver, or directional cover blocking the lamp, the light can project upward with relatively little obstruction.

Choose an open-top well light when the fixture can sit close to the subject and the desired lighting direction is mainly upward.

It works particularly well when you want:

• The fixture to remain visually discreet
• Strong vertical illumination
• Light originating directly from ground level
• A clean architectural or landscape uplighting effect

An adjustable spotlight is generally better when the light needs to travel at a noticeable angle or when precise aiming is required.

With a fixed open-top well light, fixture placement essentially becomes the aiming method.

The most important factors are not the plant species, but its height, density, trunk structure, and canopy shape.

Good candidates usually have enough vertical structure for the light to travel upward through or across the plant.

Look for:

• Adequate height
• Visible trunk or branching structure
• Enough foliage to catch the light
• Openings that allow the beam to penetrate upward
• Sufficient canopy depth

Very short planting may not make good use of a strong upward beam.

Yes, but density matters.

Moderately dense foliage can produce attractive depth because some leaves catch the light while others remain in shadow.

If the foliage is extremely dense from ground level, however, the lowest leaves can block much of the beam before it reaches the upper portion of the plant.

In that situation, it may help to position the fixture near a natural opening or slightly outside the densest part of the foliage.

Yes.

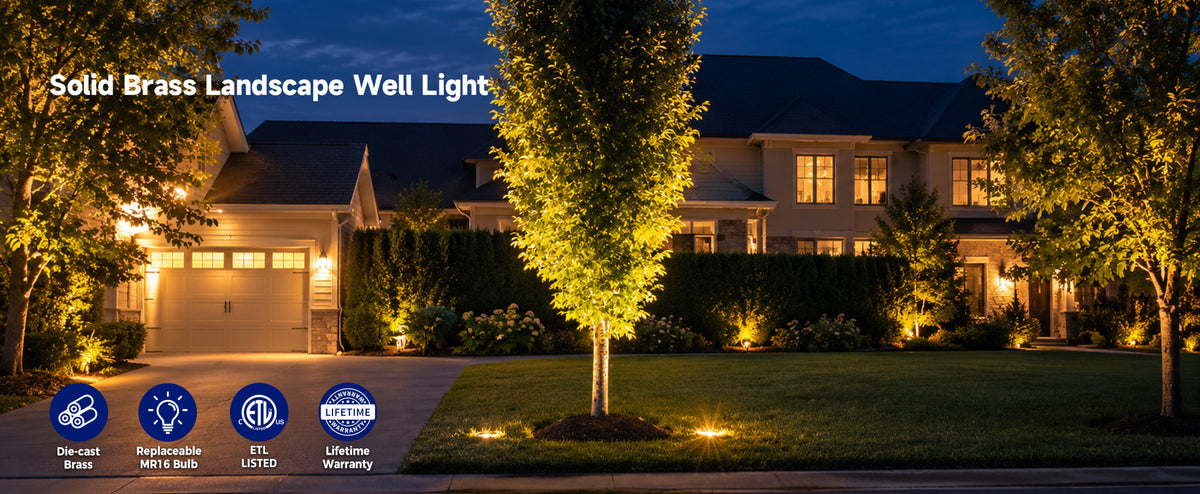

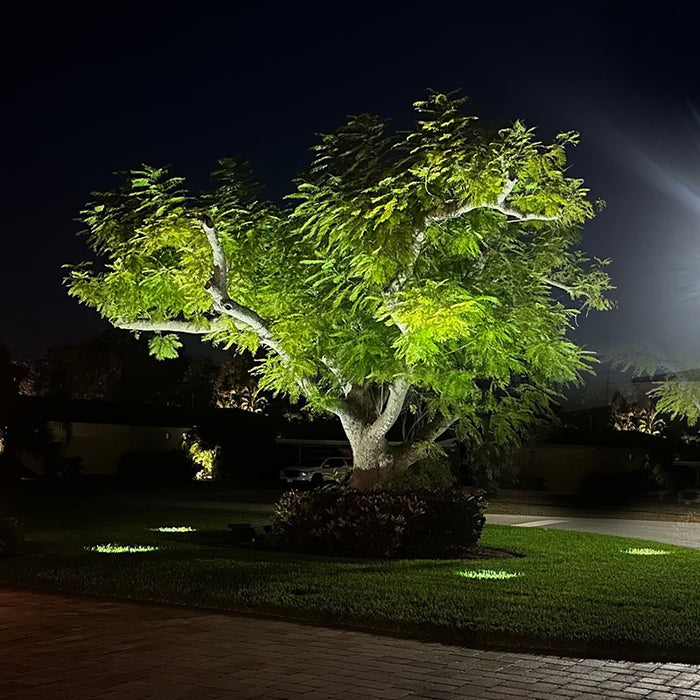

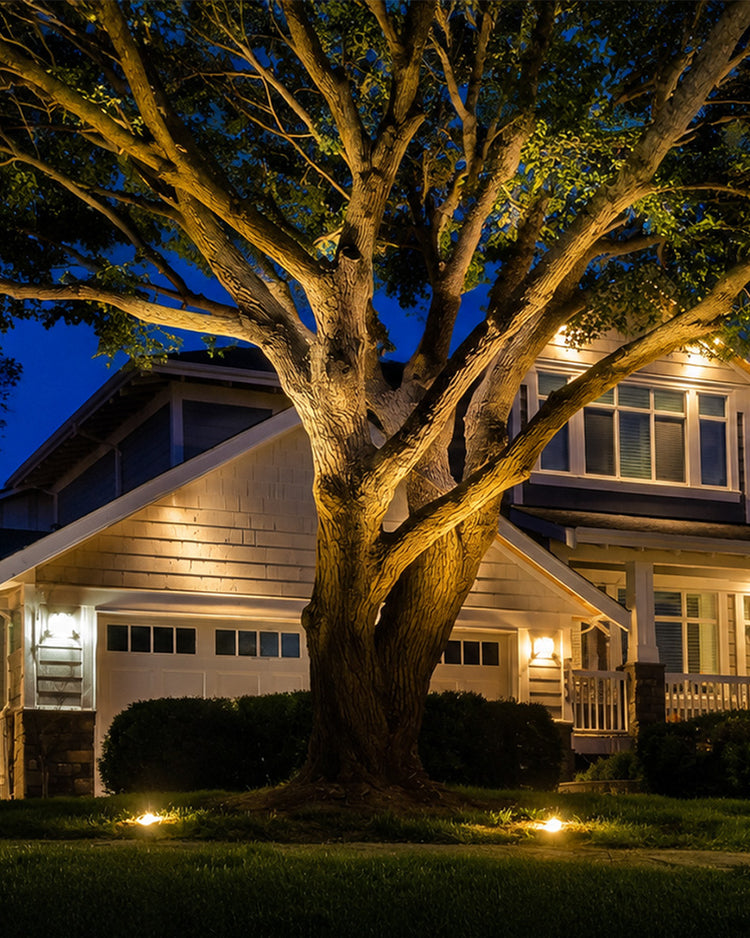

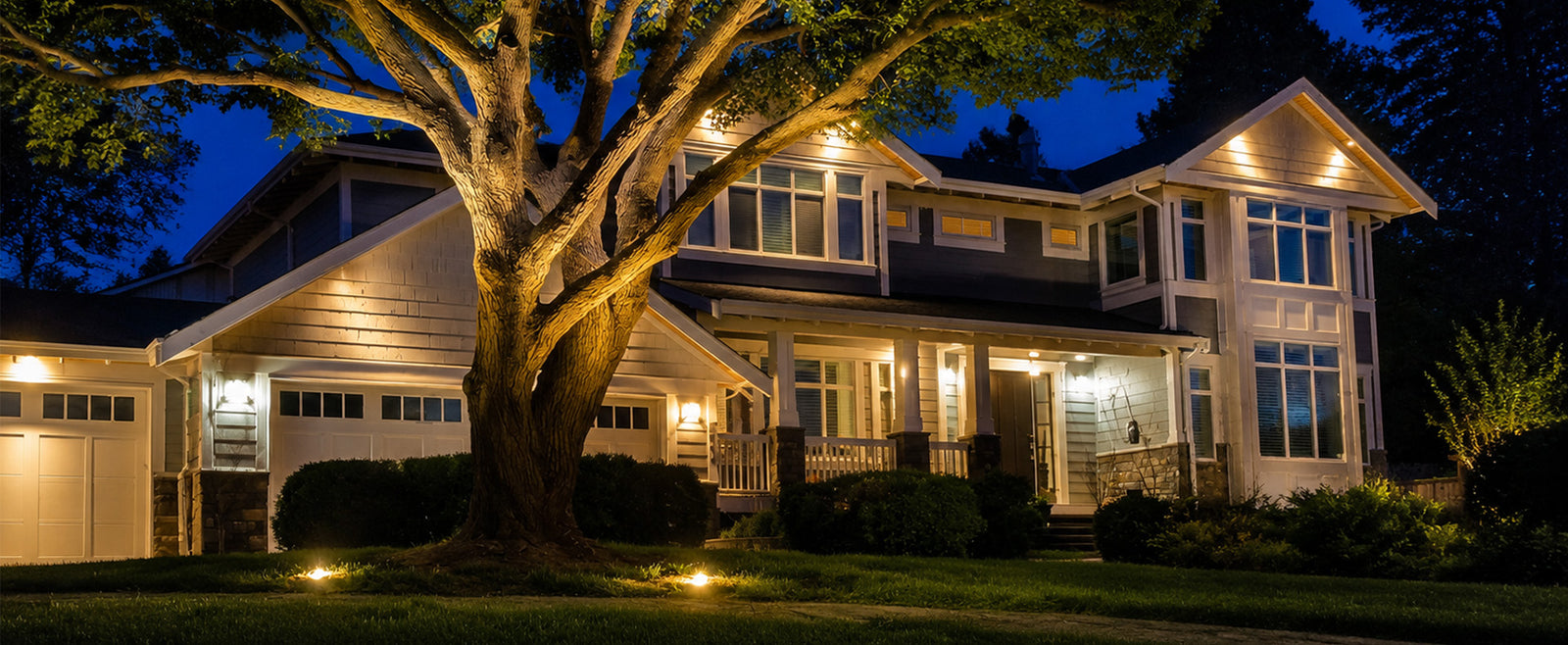

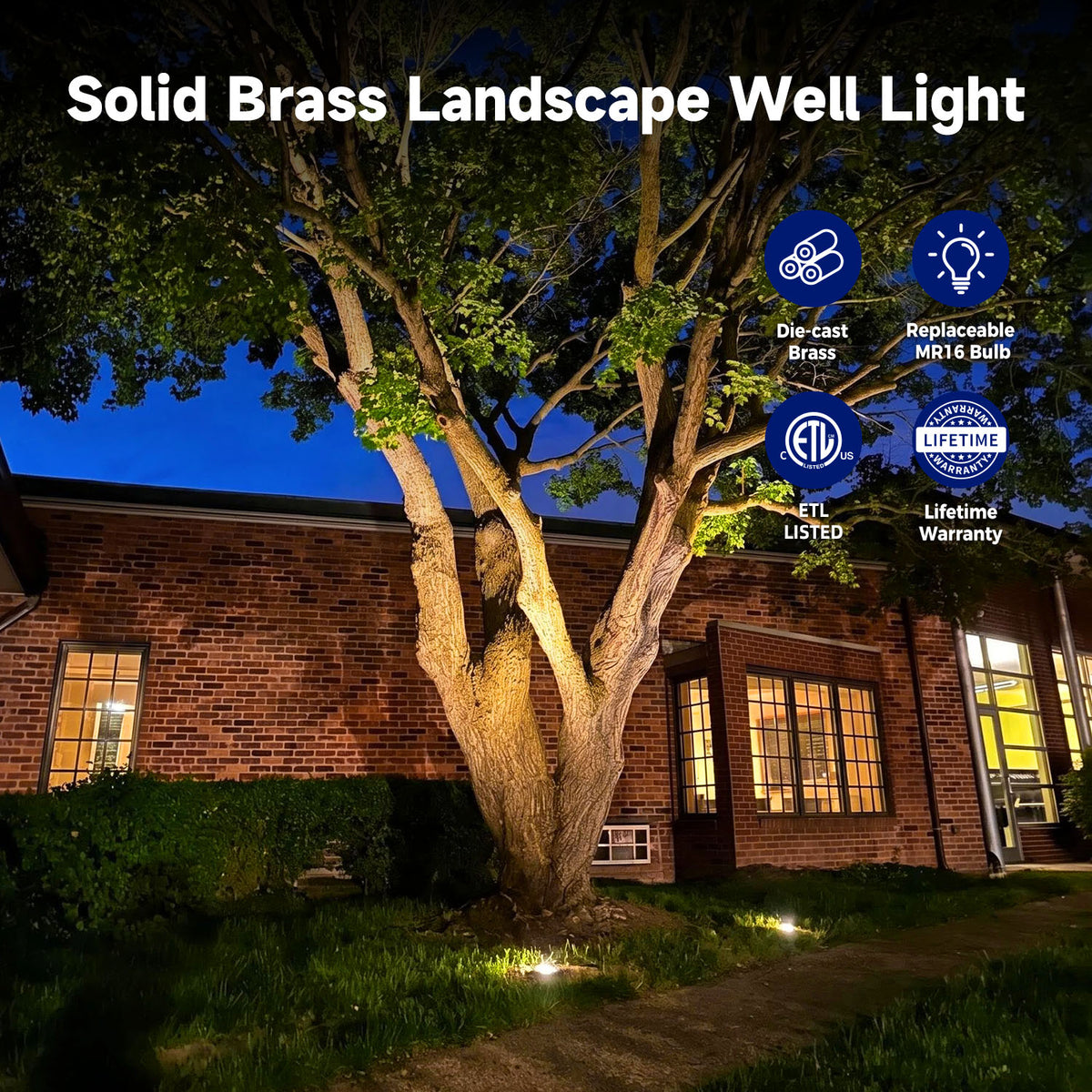

A tree with a visible section of trunk before the canopy begins often works especially well with upward lighting because the beam can first reveal the trunk and then continue into the branches and foliage.

If foliage begins immediately at ground level, the effect becomes more focused on illuminating the foliage mass rather than highlighting the trunk.

Both can work, but the visual result is different.

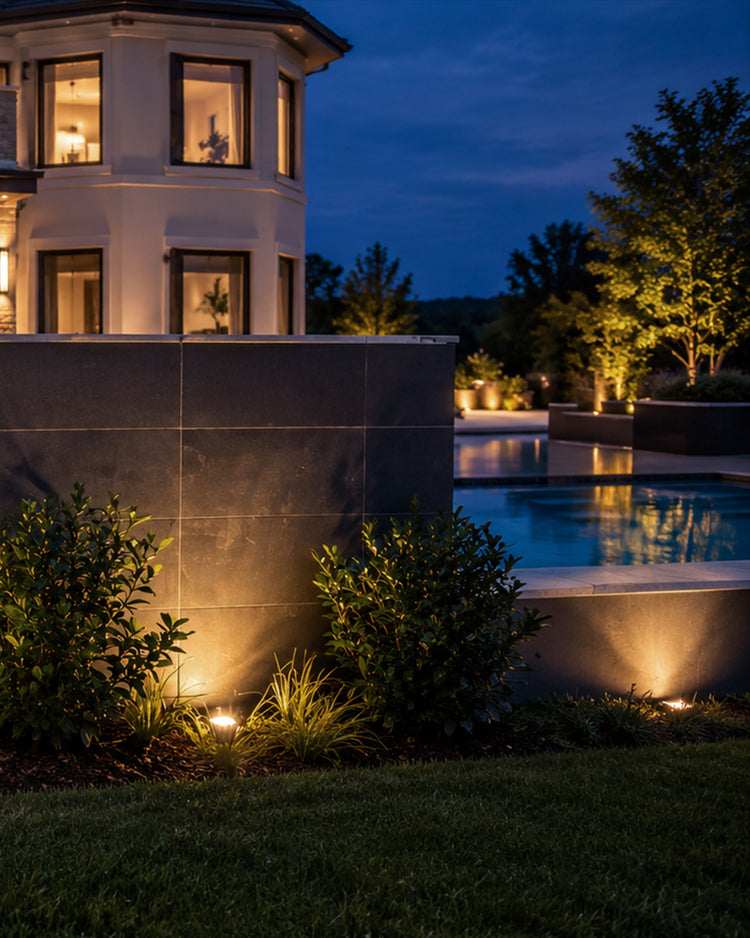

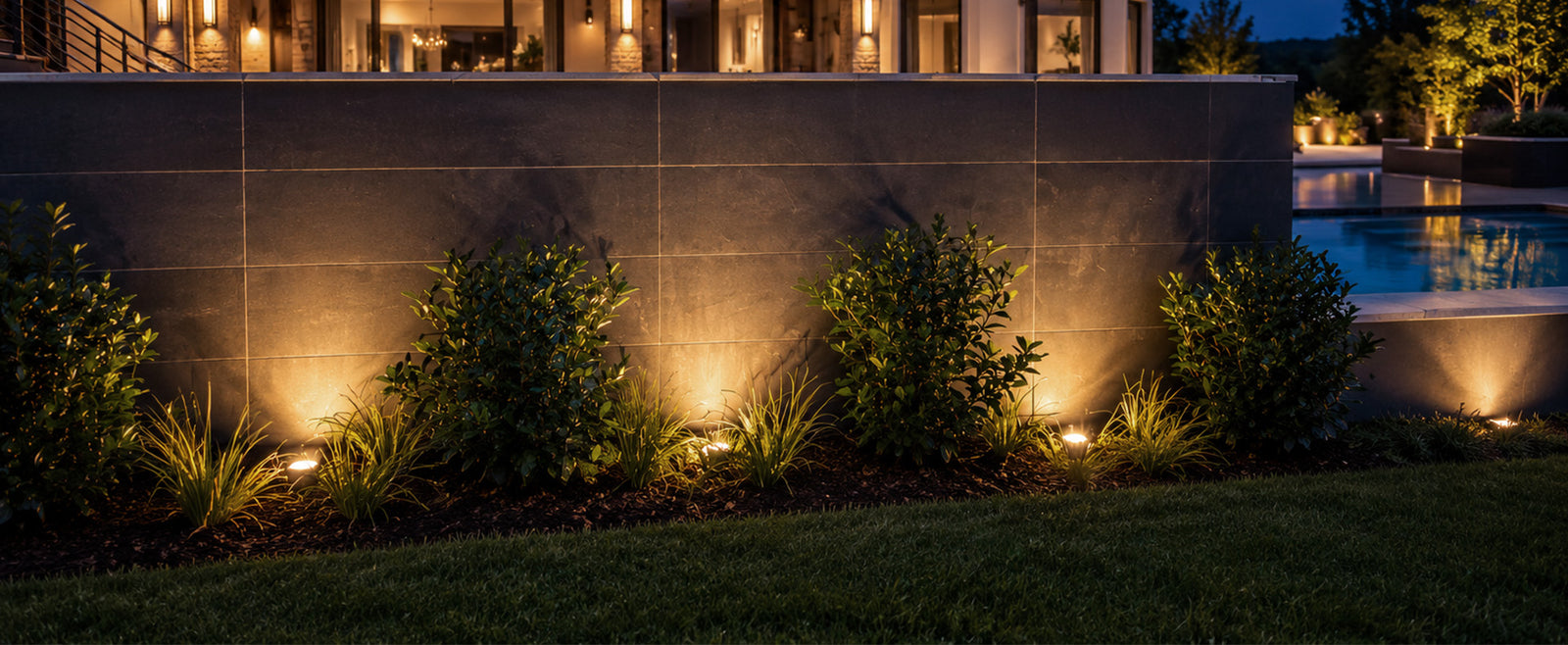

A fixture placed closer to the wall produces a stronger grazing effect.

This emphasizes:

• Stone texture
• Brick joints
• Surface relief
• Architectural details

Moving the fixture farther away generally creates a broader and softer wash.

As a simple rule:

• Closer = stronger texture and shadow
• Farther away = broader, more even illumination

Nighttime testing is recommended before final installation.

Yes, but placement becomes more important.

On a highly textured stone or brick wall, close placement can create dramatic shadows and depth.

On a smooth wall, installing the fixture too close may produce a narrow bright streak or obvious hotspot.

A slightly greater setback and a wider beam can often create a more balanced result.

Sometimes, but not always.

One fixture works best when the subject is relatively narrow or when a concentrated uplighting effect is desired.

Two or more fixtures may produce better coverage when the subject has:

• A wide canopy
• Multiple trunks
• A large architectural surface
• A wide column or feature
• Several important viewing angles

Multiple fixtures can also reduce the appearance of one extremely bright area surrounded by darkness.
